Click to enlarge [more info]

800 litre/180 gallon polypropylene tank Low level chemical induction bowl Self flushing pressure filter High impact UPVC spraylines Unique boom suspension system 3 or 4 section electric in cab boom shutoff Self flushing in line pressure filter Hydraulic boom inclination Direct proportional output in a given gear Water self fill Highly durable tubular alloy boom 3 piston 100 litre per min diaphragm pump Hydra pneumatic boom suspension In cab pressure adjustment Unique constant recirculating plumbing 11/4 main suction filter



Click to enlarge [more info]

Stainless steel spraylines 12 to 24 Metre booms Water self fill Highly durable lattice steel boom Hydraulic boom inclination Hydra pneumatic boom suspension Anti yaw horizontal pivot system In cab pressure adjustment 4 section electric in cab boom shutoff Laser recirculating plumbing Direct proportional output in a given gear 2" main suction filter Steel work shot blasted and powder coat paint finish 1200 or 1000 Litre GRP tank Stainless Steel Low level chemical induction bowl Self flushing pressure filter 6 piston 230 litre per min diaphragm pump Clean water tank Contaminated clothes locker



Click to enlarge [more info]	Passive or Electronic-Hydraulic Tracking Headstock Various Drawbar Options Stainless steel spraylines Height adjustable axle 11.2 R 44 wheel equipment Adjustable track Hydraulically braked axle Water self fill Highly durable lattice steel boom Electric in cab control of all boom services Hydraulic boom inclination Hydra pneumatic boom suspension Anti yaw horizontal pivot system In cab pressure adjustment 4 section electric in cab boom shutoff Laser recirculating plumbing Direct proportional output in a given gear 2" main suction filter Steel work shot blasted and powder coat paint finish 2500 litre/550 gallon baffled GRP tank Low level chemical induction bowl Self flushing pressure filter 6 piston 230 litre per min diaphragm pump Clean water tank Contaminated clothes locker



Click to enlarge [more info]

Stainless steel spraylines 11.2 R 44 wheel equipment Adjustable track Hydraulically braked axle Water self fill Highly durable lattice steel boom Electric in cab control of all boom services Hydraulic boom inclination Hydra pneumatic boom suspension Anti yaw horizontal pivot system In cab pressure adjustment 4 section electric in cab boom shutoff Laser recirculating plumbing Direct proportional output in a given gear 2" main suction filter Steel work shot blasted and powder coat paint finish 2500 litre/550 gallon baffled GRP tank Low level chemical induction bowl Self flushing pressure filter 6 piston 230 litre per min diaphragm pump Clean water tank Contaminated clothes locker Excellent under belly clearance Fully baffled GRP tanks 3000 to 3800 lts with integral clean water tanks Fully hydraulic booms with hydraulic boom tilt and hinge locking Hydraulically Steered Electronically Controlled Steering Axles Pickup On Lower Link Arms Up to 134 acres (54 Hectares) per fill with Airtec



Click to enlarge [more info]   Click to enlarge [more info] Click to enlarge [more info]

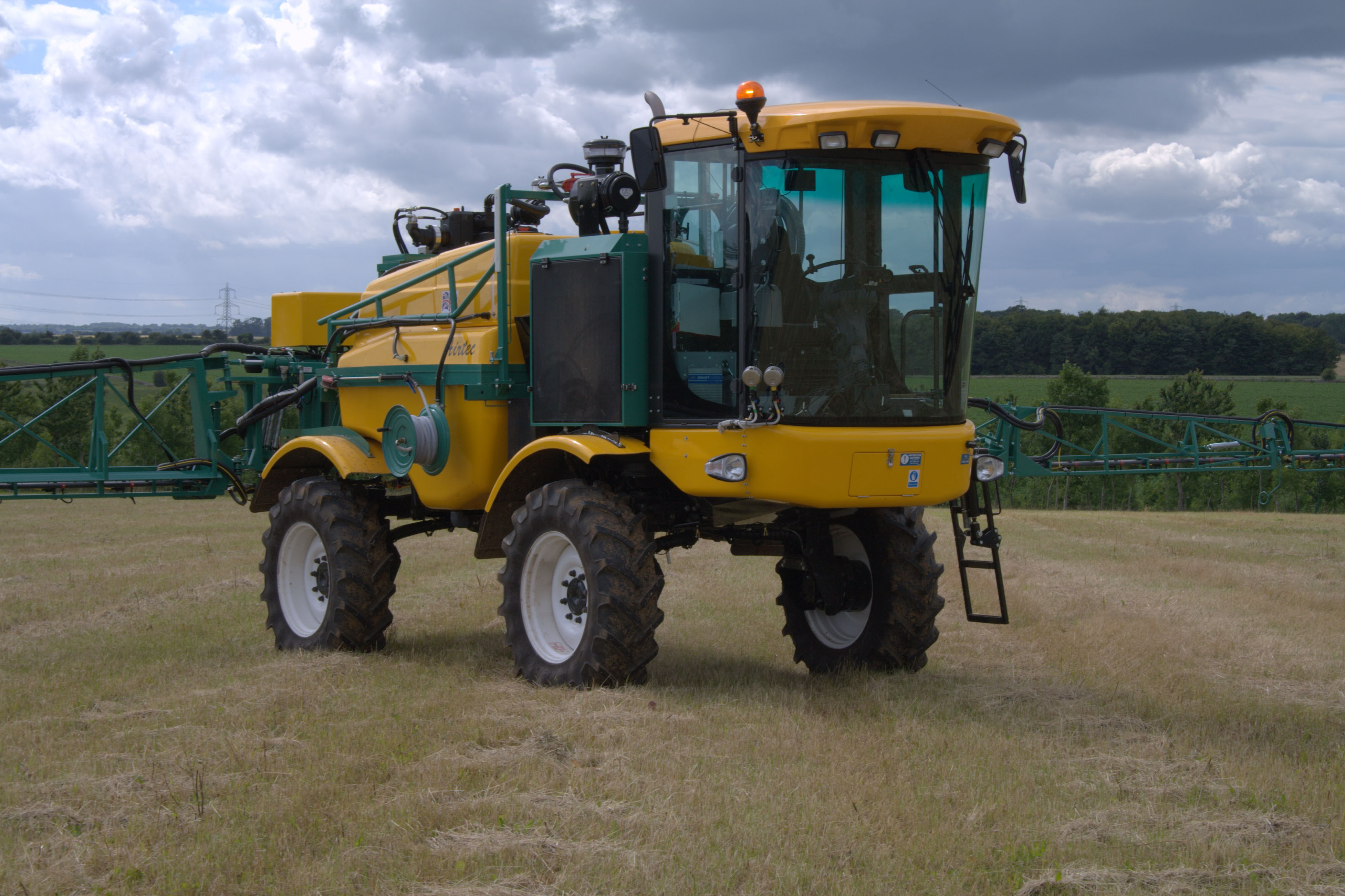

Vehicle Specification Perkins 1100 series tier 2 176 HP 6 Cylinder Turbocharged Engine Full Poclain Hydra-Static system Permanent 4 Wheel Drive Selectable 2/4 Wheel Steering with auto re-alignment 1020 mm clearance on 12.4R32 Wheels Adjustable Track Width Hydra-Static braking with fail safe parking brake 200 Litre Fuel Tank Load Sensing Pneumatic Suspension Full Carbon Filtration & Air Conditioning To PM 74 Full cab Heating Fully Suspended Drivers Seat High Quality Stereo/Radio Cassette Flashing Beacon Multi Function Joystick Control combines control of vehicle speed,  sprayer hydraulics, and boom sections Storage Compartment Delta 34 Control System Tinted Glass With Curved Windscreen Sprayer Specification:-  3000 Litre Fully Baffled GRP Tank 18m - 36m 4 Series Heavy Duty Gullwing Boom (Machine shown 36M) In cab Hydraulic Boom Controls Hydraulic Fold, Raise, Lower, & Inclination Hydra-Pneumatic Boom Suspension Rubber block anti yaw system Booms Fitted With Stainless Steel Spraylines and colour coded quick fit nozzles Laser Agitation System Interactive fluid control system with push button selection Stainless Steel Chemical Induction Bowl With Can Wash Probe Sprayer Self Fill With 6M Filling Hose & Foot Strainer 2 Fast Fill & Pump Out Self Flushing Main Pressure Filter 2 Suction Filtration 4 Section Ball Valve Boom Shut Off Automatic Pressure Compensation Proportional Output In A Given Gear 6 Cylinder AR 230 Lm Diaphragm Pump In Cab pressure Adjustment Internally Moulded 300 Lt. Cleanwater Tank In Field Flushing With 2x1 Tank Flush Jets Protective Clothing Locker Full Road Lights

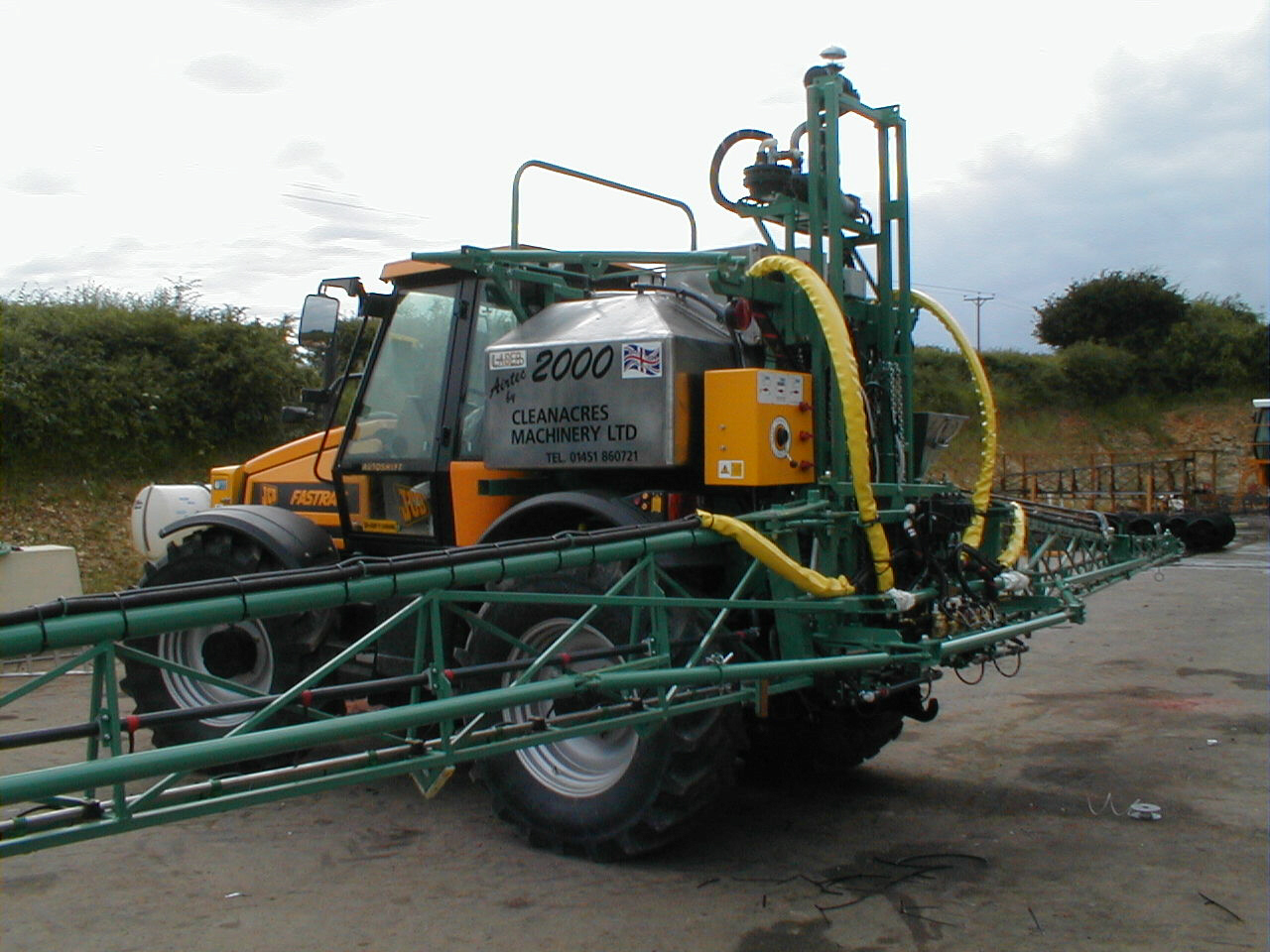

Click to enlarge [more info]	Excellent weight distribution Front or rear mounted pump Tank capacity 2000 litres Low profile fully baffled GRP tank Heavy duty Gullwing booms up to 28m Unrestricted cab access Electro-hydraulic boom controls Three stage filtration Electric ball valve  boom shut off Demounts in under 10 minutes Range of pump options Up to 35Ha - 87 acres per fill with Airtec
