Airtec®

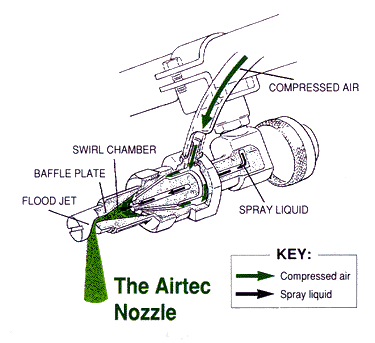

The Airtec sprayer uses specially developed nozzles to combine air and agrochemical into droplets which behave in a completely different way from conventionally produced sprays.

Droplets produced in this way require far less water than solid water droplets which means using application rates of typically 70 litres/ha as opposed to 200 litres/ha with conventional systems. Less water means greater coverage per tank, less re-filling and higher outputs.

Each Airtec droplet contains tiny air bubbles which burst on impact to improve deposition and independent research work has shown retention of chemical to be far superior with Airtec.

Droplets are entrained into the crop in a curtain of air which helps the Airtec sprayer cut drift to just 10% of that from conventional sprayers in certain conditions. Producers spraying with Airtec enjoy a far wider application window than their conventionally-equipped counterparts.

And with Airtec you can adjust water and air pressure on the move to produce exactly the right droplet spectrum for varying weather and crop conditions.

Airtec Twin Fluid Advantage Conventional / Venturi Nozzle Disadvantages
More efficient. Higher gross margins. Inefficient chemical use and less profits.
Maximum versatility. Frequent nozzle changes needed.
Higher yields. Less efficient disease control.
Easier combining. Less effective weed control and more costly breakdowns.
Faster, safer working. Greater safety worries and more downtime.
Greater spray window and better timing. Frequent re-filling and lower outputs.
  More fields per day. Less available spraying days.


Airtec "Magic Box 2"





bulletRead Outs metric or imperial
bulletPart Area
bulletTotal Area
bulletApplication Rate
bulletForward Speed
bulletLitres used
bulletLitres left
bulletTime in work
bulletClock
bulletAutomatic control of application rate in relation to forward speed
bulletAutomatic control of spray quality
bulletThe ability to change spray quality or application rate independently of each other
bulletWill control all Airtec restrictors and up to eight different sizes of conventional or liquid fertiliser nozzles.
[more info]
